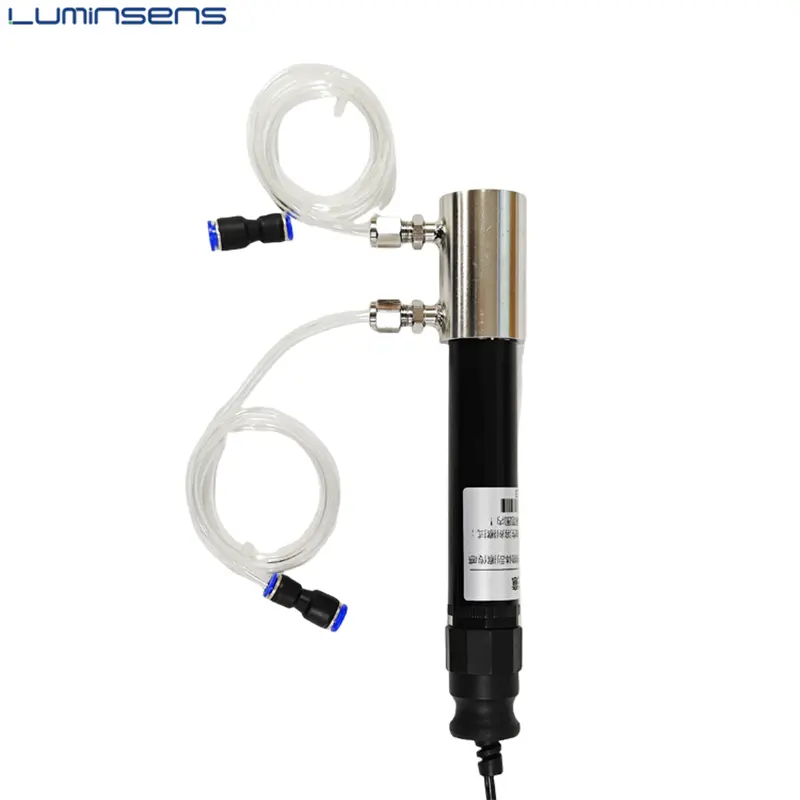

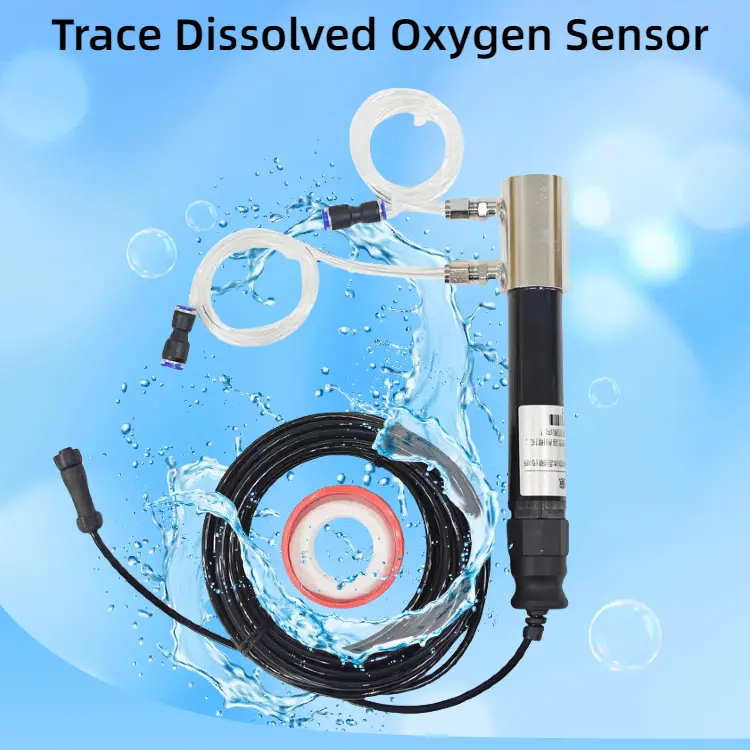

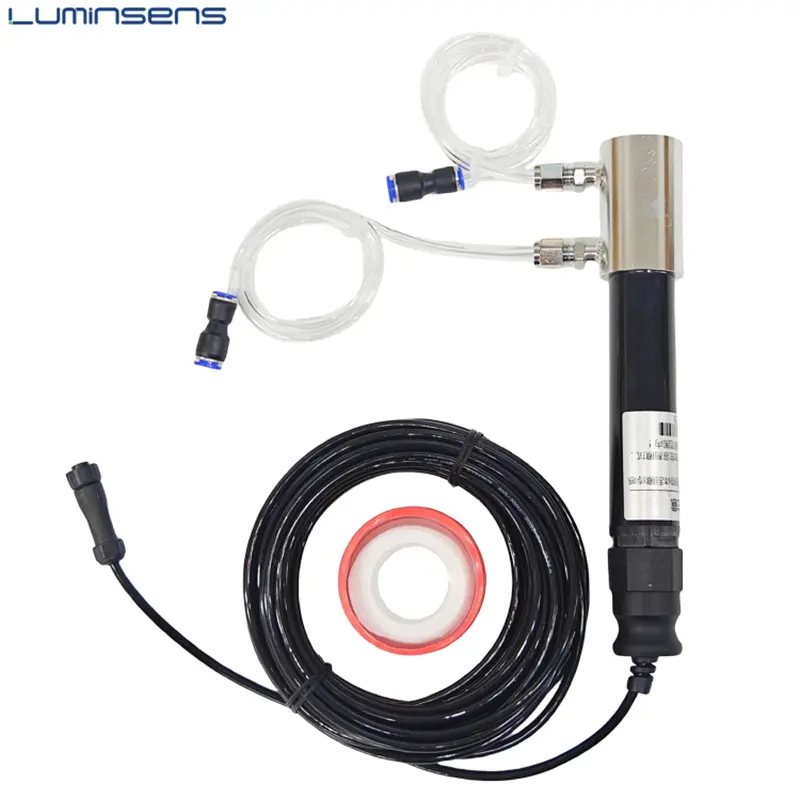

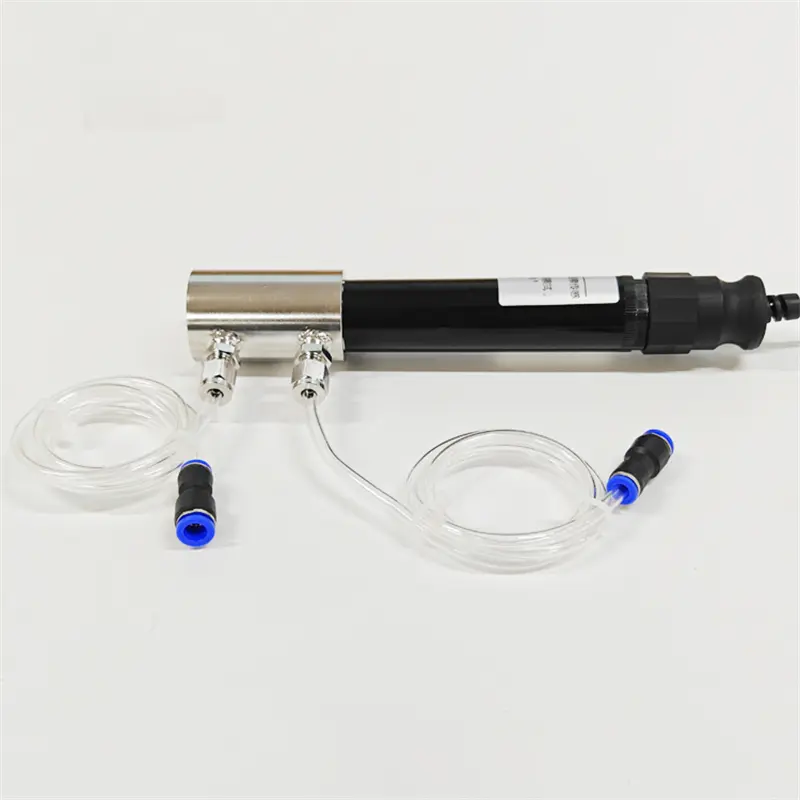

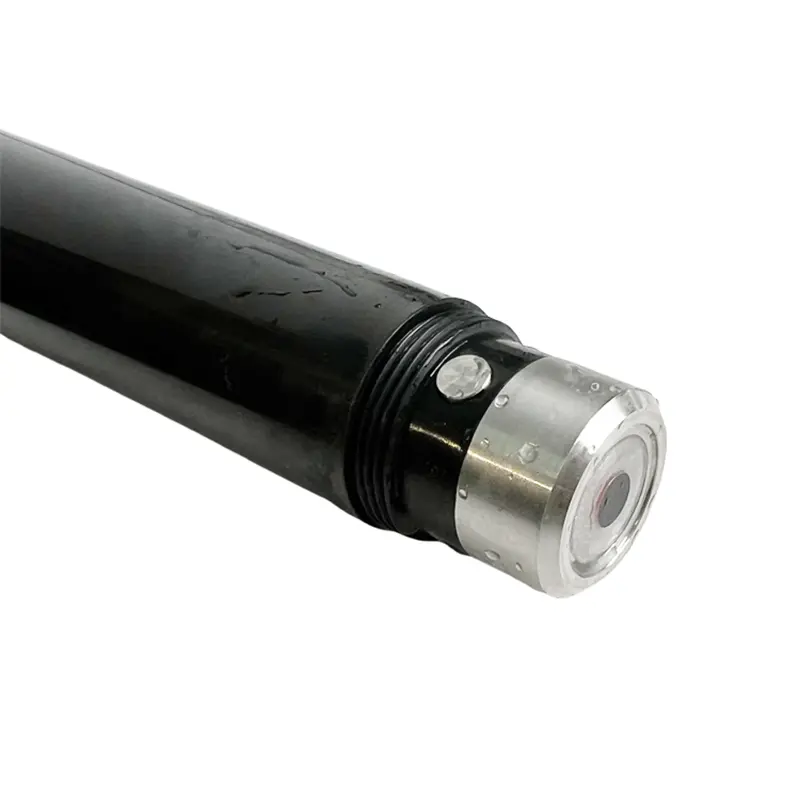

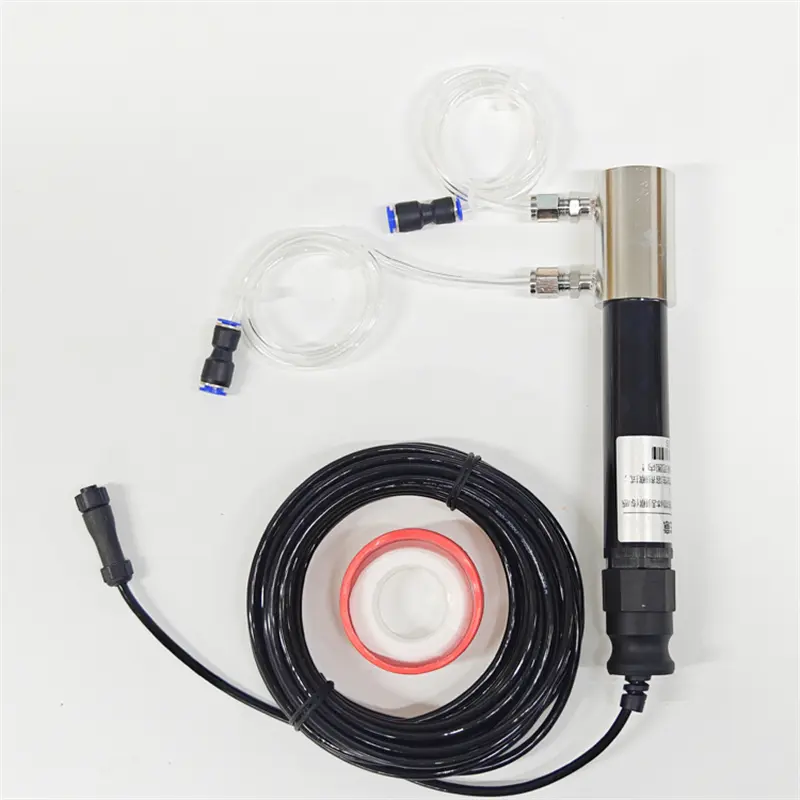

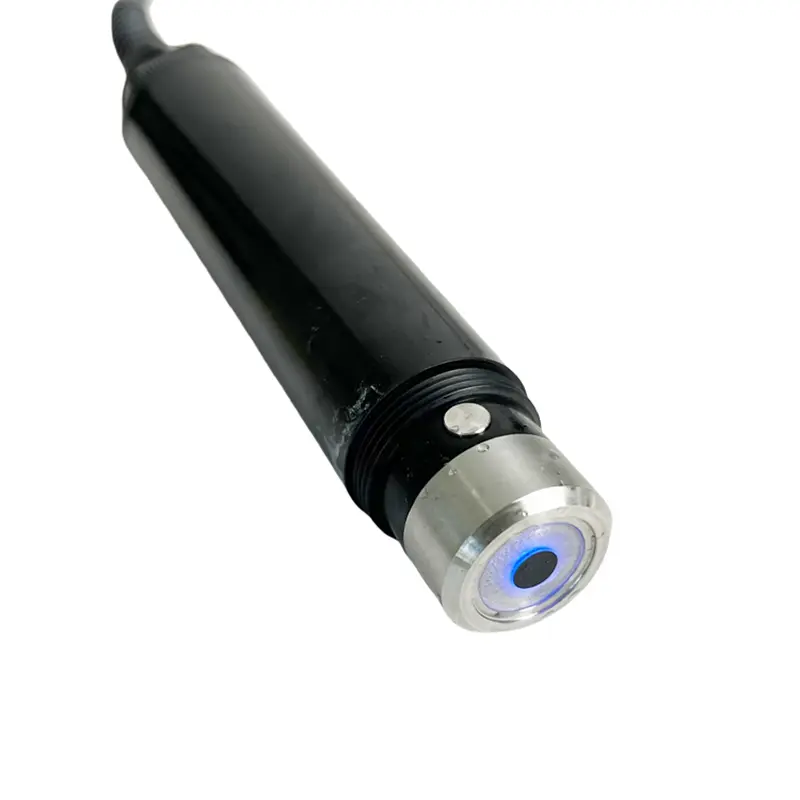

Fluorescence DO Probe Meter Trace Dissolved Oxygen Sensor

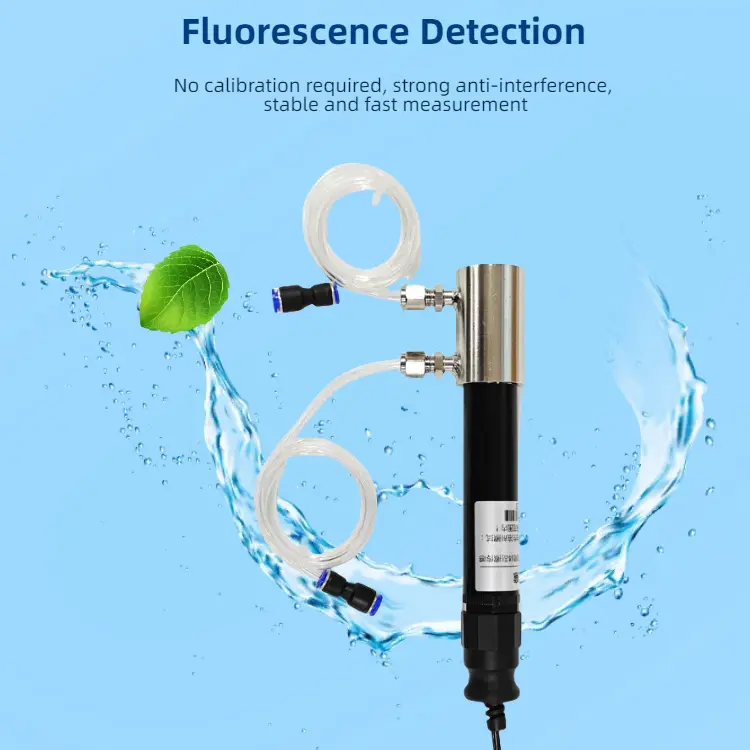

The Luminsens Trace Dissolved Oxygen Sensor is a cutting-edge solution designed for precise measurement of trace-level dissolved oxygen (DO) in various water environments. Leveraging self-developed fluorescent material, this sensor operates on the principle of fluorescence quenching, eliminating oxygen consumption during measurement and ensuring maintenance-free operation. Its innovative design offers a long service life, rapid response to environmental changes, and robust anti-interference capabilities, delivering stable and reliable data even in challenging conditions. The sensor can be seamlessly integrated with both portable fluorescent dissolved oxygen analyzers and online monitoring systems, adapting to diverse detection needs—from on-site field surveys requiring mobility to continuous industrial process monitoring. With a measurement range of 0–2000 ppb for dissolved oxygen and 0–50°C for temperature, it caters to applications where micro-level DO accuracy is critical, such as semiconductor manufacturing, pharmaceutical water treatment, and ecological research.

    Product Paramenters

    Product Name Trace Dissolved Oxygen Sensor
    Measurement method Fluorescent

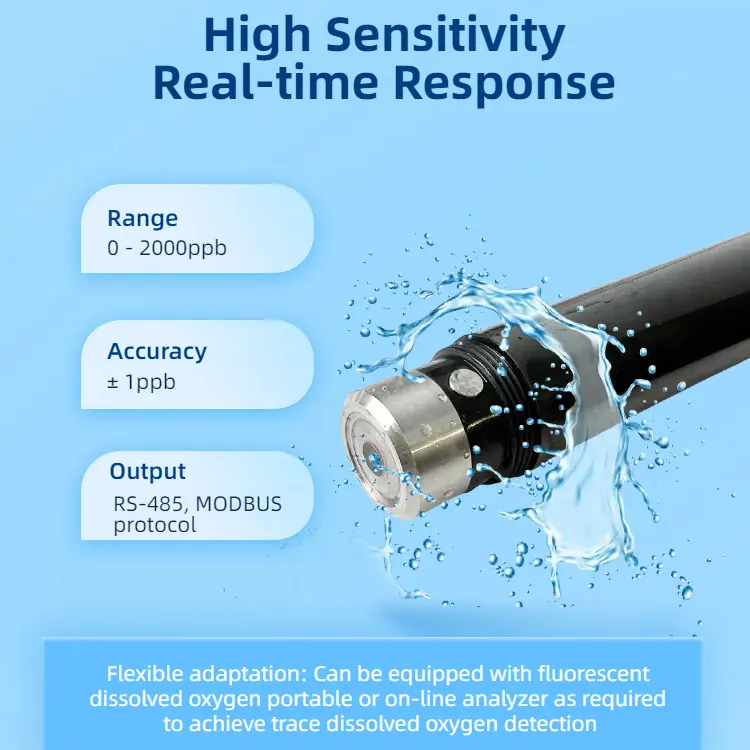

    Range 0 - 2000ppb, Temperature: 0 - 50℃
    Accuracy ±1 ppb or 3% reading, whichever is greater
    Voltage 9 - 24VDC (Recommend 12 VDC)
    Material Polymer plastics
    Size 32mm*180mm
    Output RS485, MODBUS protocol
    IP Grade IP68
    Application Test Boiler Water/ Deaerated Water/ Steam Condensate Water/ Ultrapure Water

    Product Features

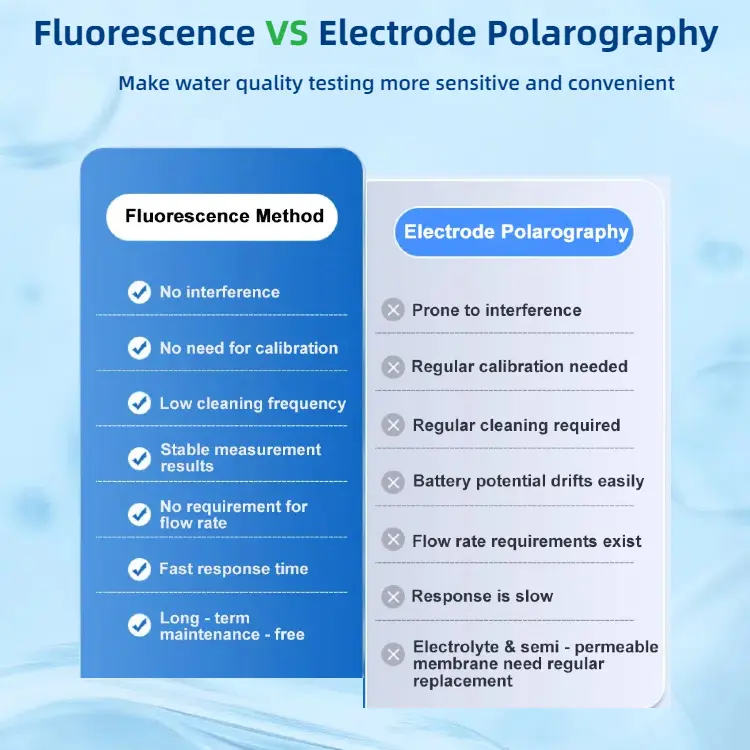

    ① Fluorescence Lifetime Technology:
    Utilizes advanced oxygen-sensitive fluorescent materials for non-consumptive measurement, ensuring no electrolyte replacement or membrane maintenance.
    ② High Precision & Stability:
    Achieves trace-level detection accuracy (±1ppb) with minimal drift, ideal for ultra-low oxygen environments such as ultrapure water systems or pharmaceutical processes.
    ③ Rapid Response:
    Delivers real-time data with a response time under 60 seconds, enabling dynamic monitoring of dissolved oxygen fluctuations.
    ④ Robust Construction:
    IP68-rated polymer plastic housing resists corrosion, biofouling, and physical damage, suitable for harsh industrial or aquatic environments.
    ⑤ Flexible Integration:
    Compatible with portable analyzers for field use or online systems for continuous monitoring, supported by RS-485 and MODBUS protocol for seamless connectivity.

    Application

    1. Industrial Process Control
    Ideal for monitoring trace dissolved oxygen in high-purity water systems used in semiconductor fabrication, pharmaceutical production, and power generation. Ensures strict quality control by detecting even minor DO fluctuations that could impact product integrity or equipment performance.
    2. Environmental & Ecological Research
    Facilitates precise measurement of trace DO in delicate aquatic ecosystems, such as wetlands, groundwater, or oligotrophic lakes. Helps researchers assess oxygen dynamics in low-DO environments critical to microbial activity and nutrient cycling.
    3. Biotechnology & Microbiology
    Supports bioreactor monitoring in cell culture, fermentation, and enzyme production processes, where trace DO levels directly affect microbial growth and metabolic efficiency. Enables real-time adjustments to maintain optimal conditions for bioprocess yields.
    4. Water Quality Monitoring
    Crucial for detecting trace DO in drinking water sources, especially in regions with strict regulatory standards. Also applicable to ultrapure water systems in laboratories or medical facilities, ensuring compliance with hygiene and safety requirements.
    application

    Digital RS485 water quality sensors technical data

    Parameter Model Range Accuracy
    DO sensor LMS-DO10B 0-20mg/L, 0-60℃ ±0.1-0.3mg/L
    DO sensor LMS-DO10C 0-20mg/L, 0-60℃ ±0.3mg/L
    Trace DO sensor LMS-TDO100 0-2000ppb, 0-50℃ ±1ppb
    PH sensor LMS-PH100 0-14pH ±0.02pH
    ORP sensor LMS-ORP100 ±1000.0 mV ±0.2 mV
    EC/TDS sensor LMS-TDS102 CT: 0-9999uS/cm; 0-100mS/cm;
    TDS: 0-10000ppm
    ±2.5%FS
    Salinity/EC/TDS sensor LMS-SAL104 Conductivity: 0.1-500 mS/cm
    TDS:0-60000ppm
    Salinity: 0-500.00ppt
    ±1.5%FS
    COD sensor LMS-COD100 COD:0.1-1500mg/L
    TOC:0.1-750mg/L
    BOD:0.1-900mg/L
    Turbidity: 0.1-4000NTU
    Temperature range: 0-50 ℃
    ±5% equiv.KHP Temperature: ± 0.5 ℃
    TSS sensor LMS-TSS100 0-50000mg/L/ 0-120000mg/L ±10%FS or 10 mg/L
    Turbidity sensor LMS-TUR10L 0-100NTU ±10%FS or 0.3 NTU
    Turbidity sensor LMS-TUR10H 0-3000NTU ±10%FS or 0.3 NTU
    CO2 sensor LMS-CO2100 2000PPM/10000PPM/50000PPM ±5%FS
    Ammonia Nitrogen sensor LMS-NH4100 0-1000 mg/L ±5%FS
    Ion Selective sensor LMS-ION100 0-1000 mg/L ±5%FS
    Oil in Water sensor LMS-OIL100 0-50 mg/L ; 0-5 mg/L ±3%FS
    Chlorophyll sensor LMS-CHL100 0-500ug/L ±3%FS
    Blue-Green Algae sensor LMS-BGA100 0-2000,000 cells/ml ±3%FS
    Residual Chlorine sensor LMS-HCLO100 0 - 20.00 ppm ±5%FS
    Marine Current sensor LMS-Current100 Temperature: -3℃ - 45℃
    Velocity of flow: 0-500 cm/s
    Flow direction: 0-359.9°
    ±0.05℃ ±1 cm/s or ±2% ±2°
