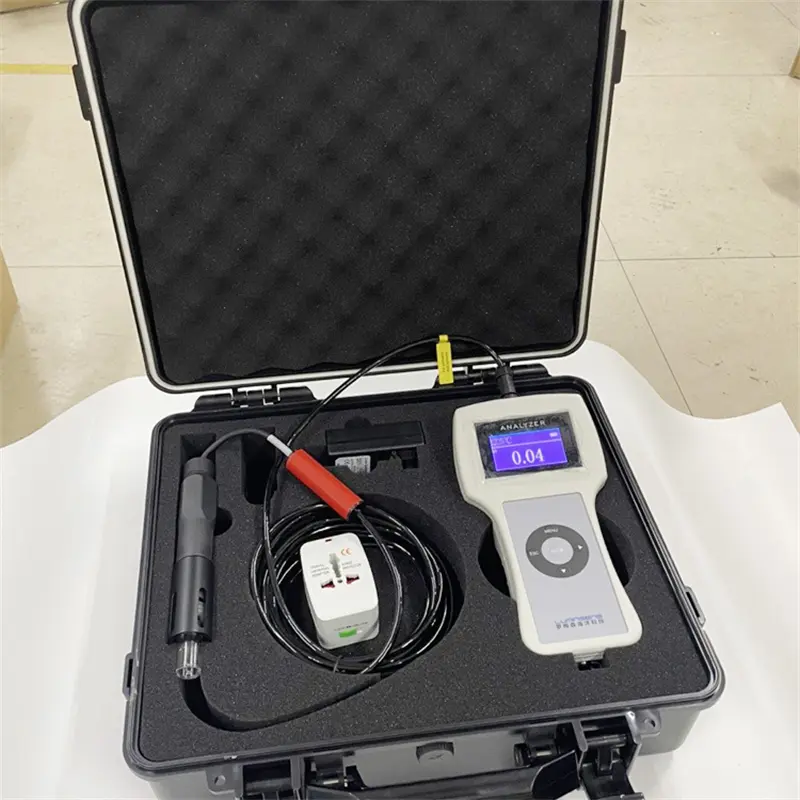

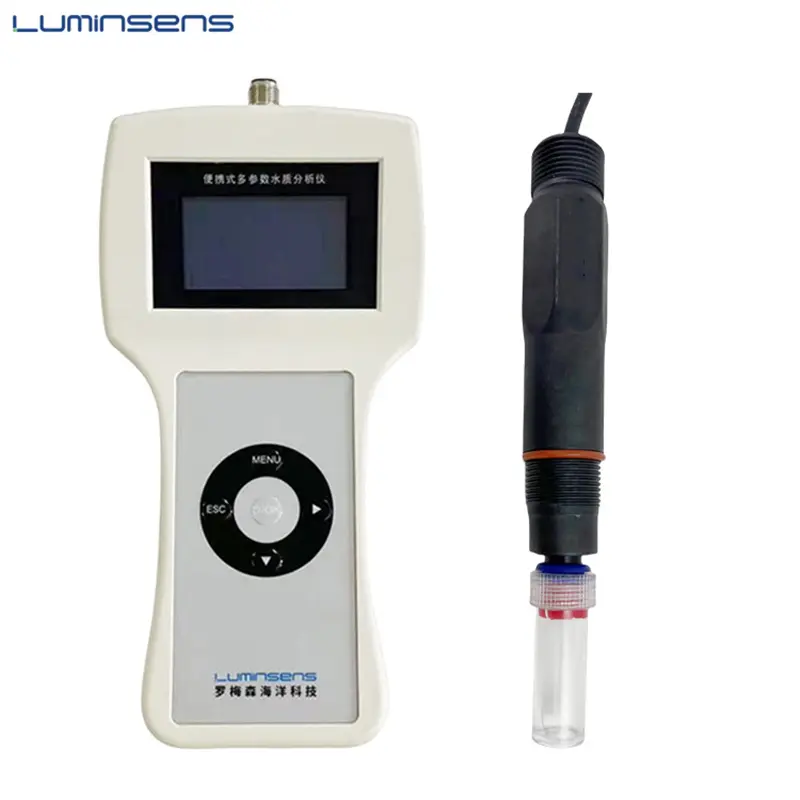

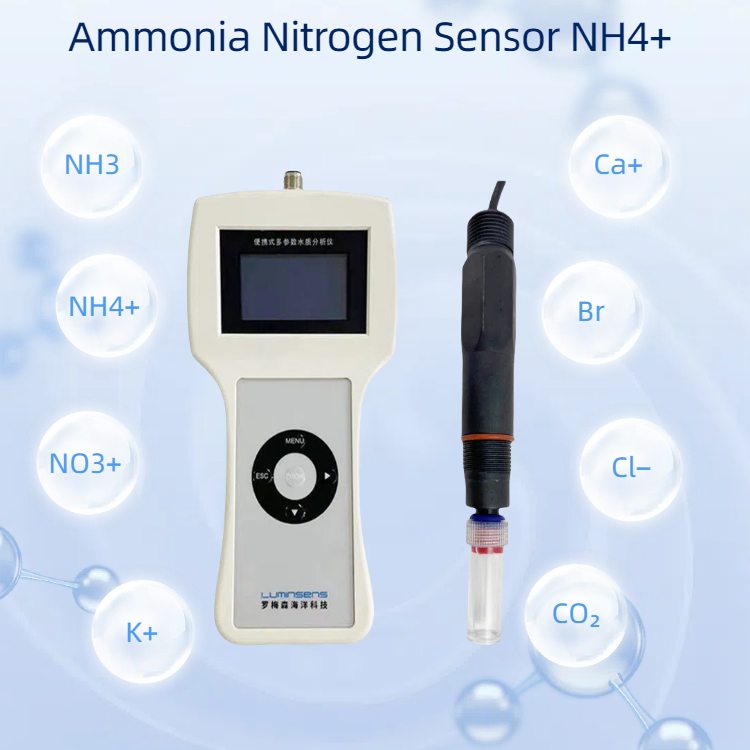

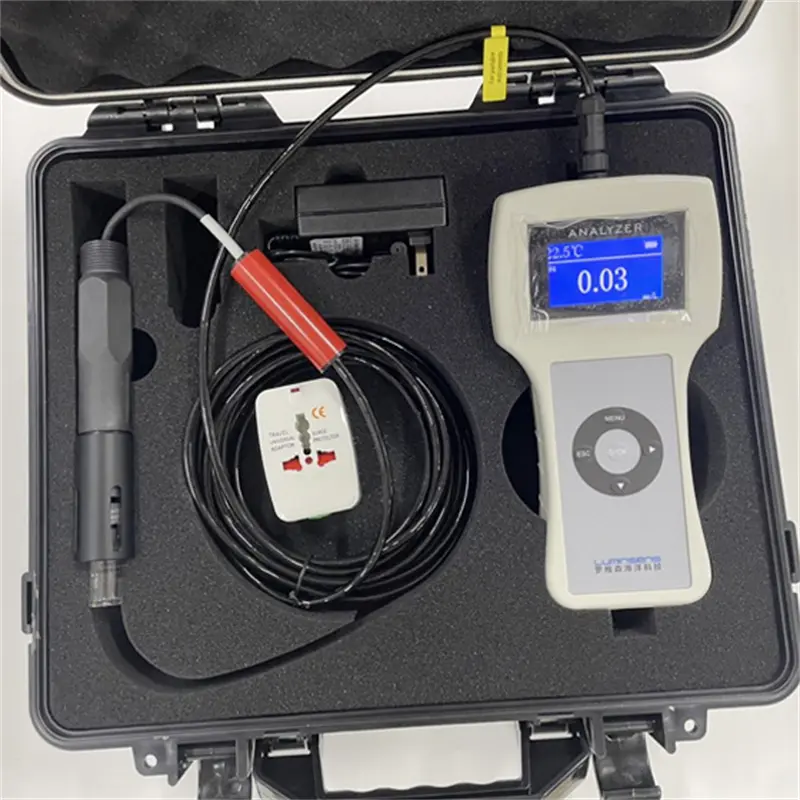

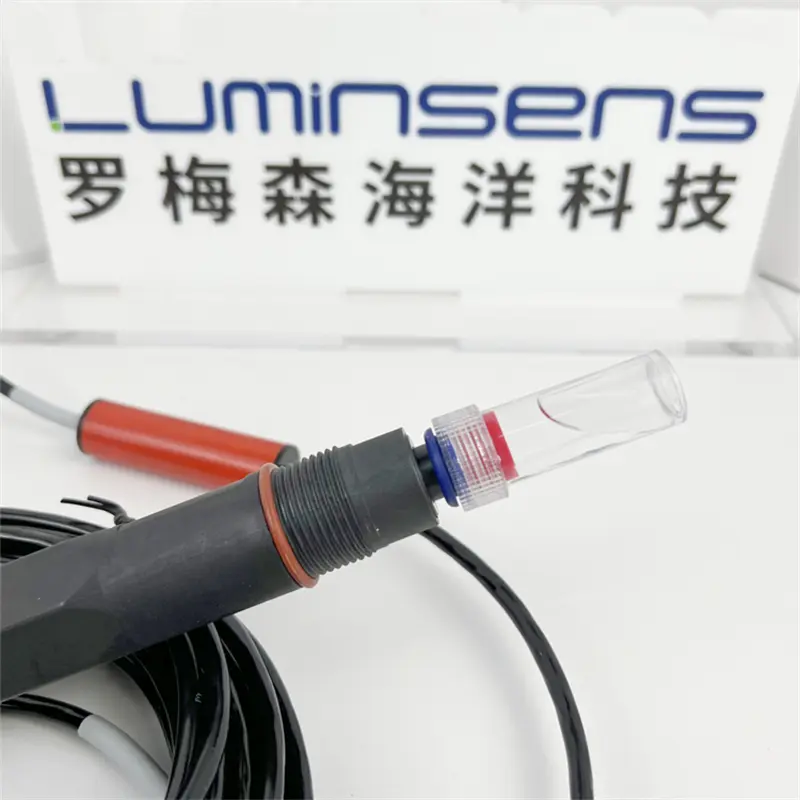

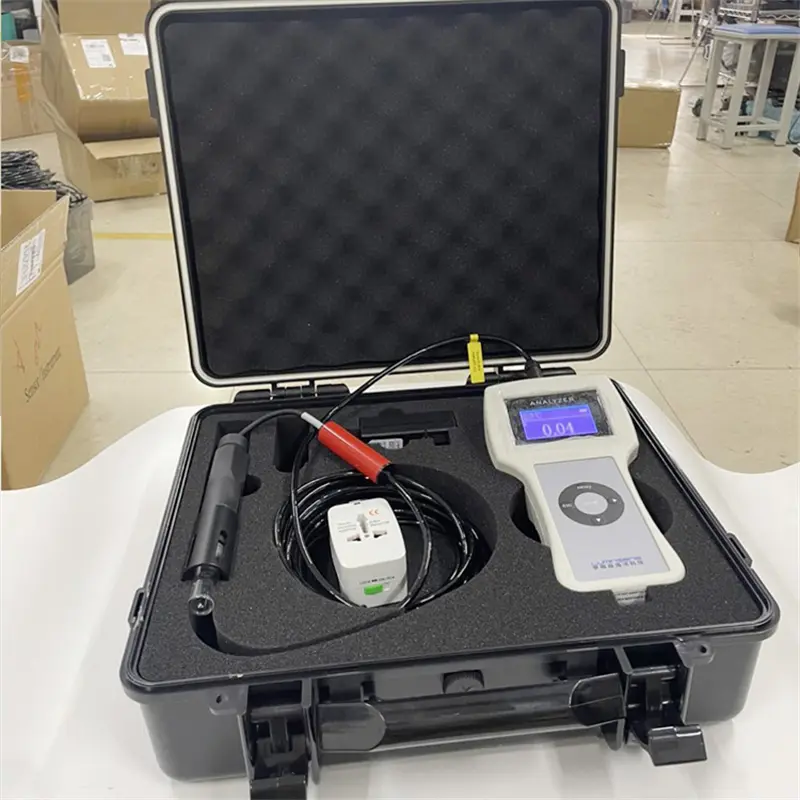

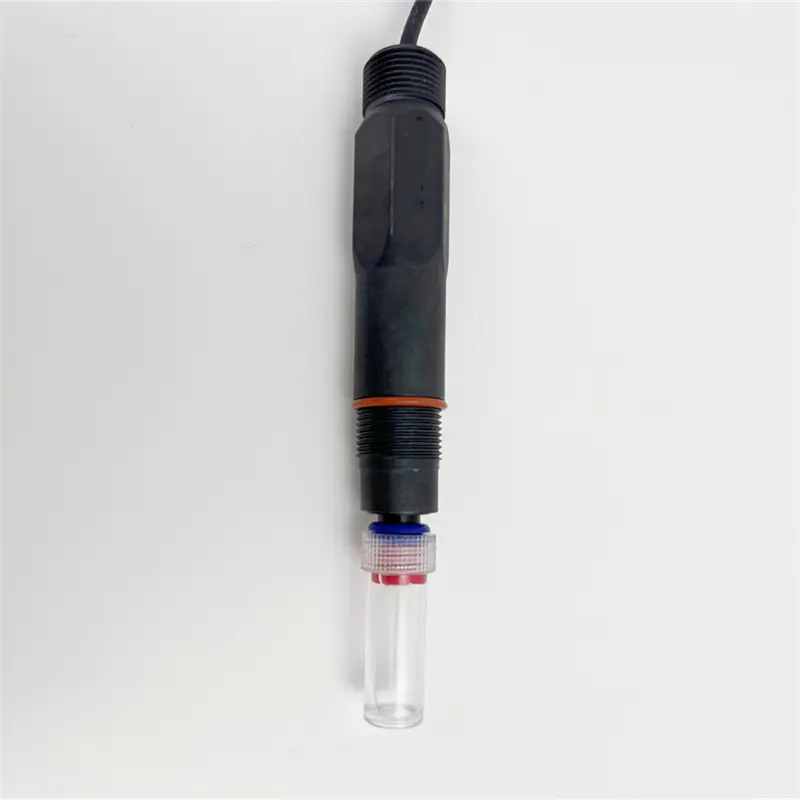

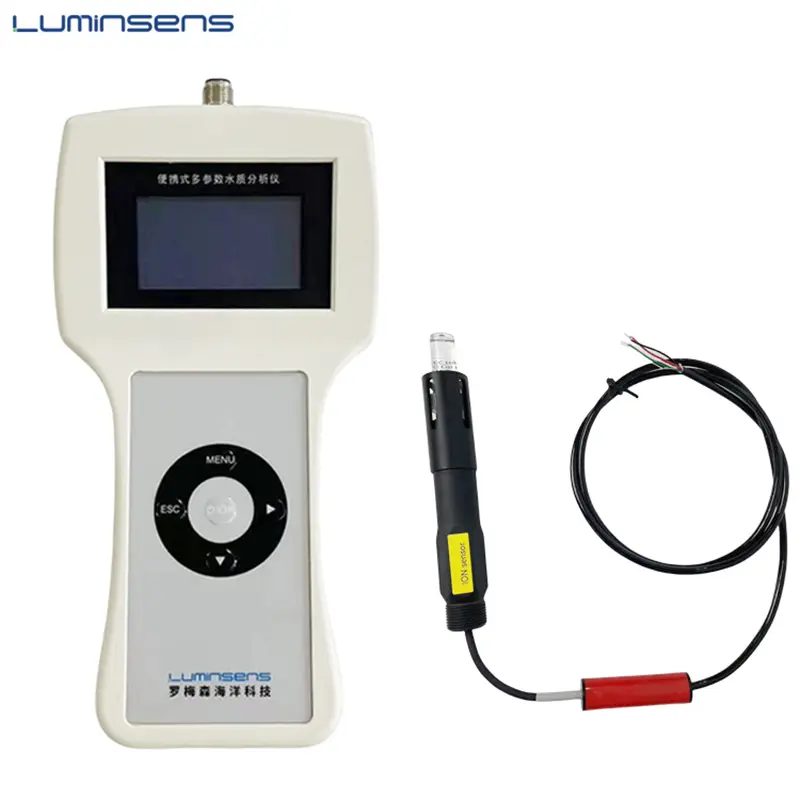

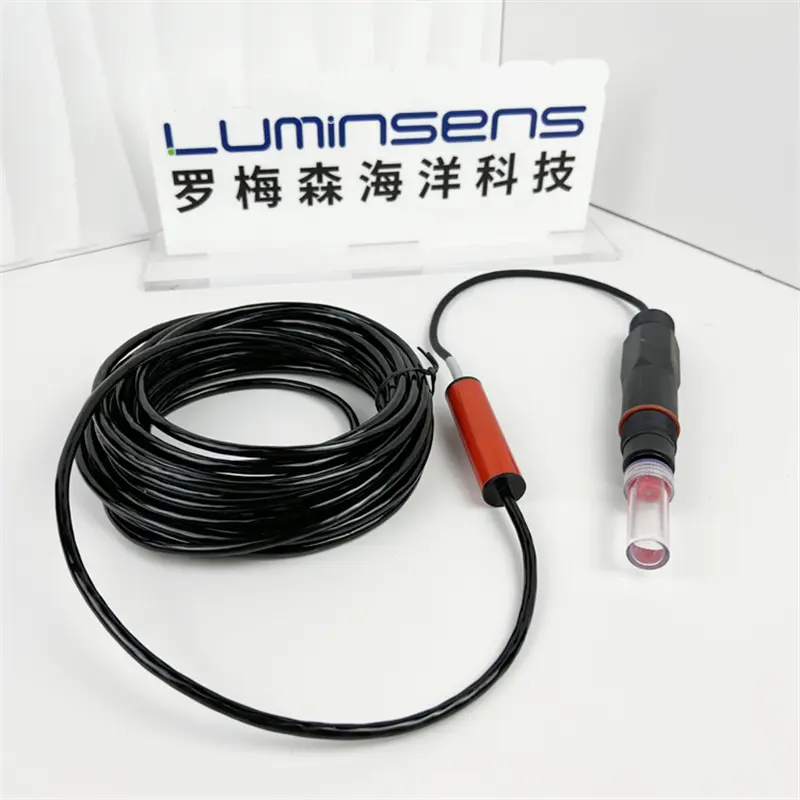

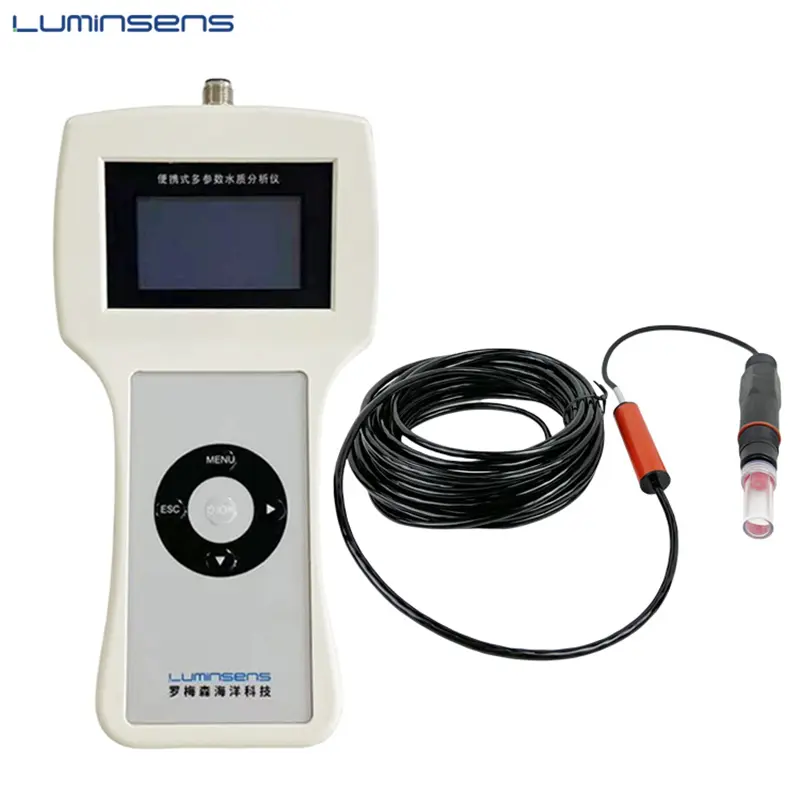

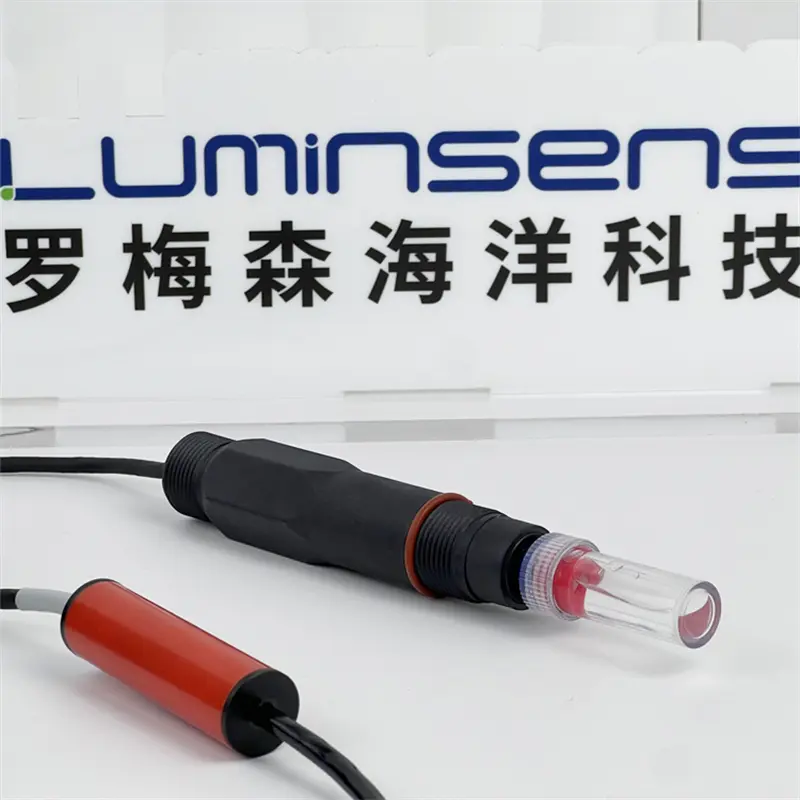

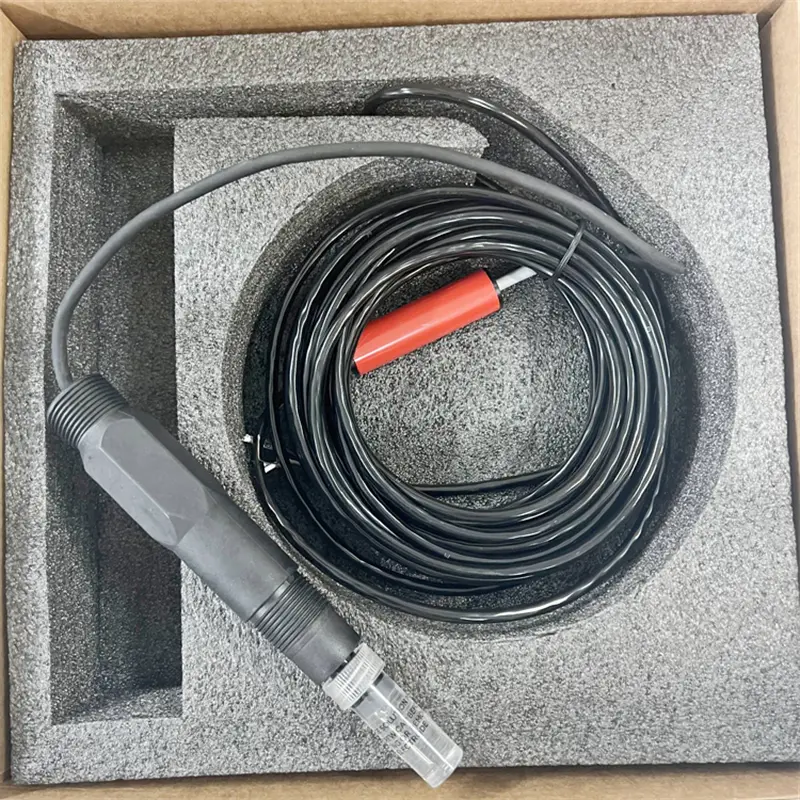

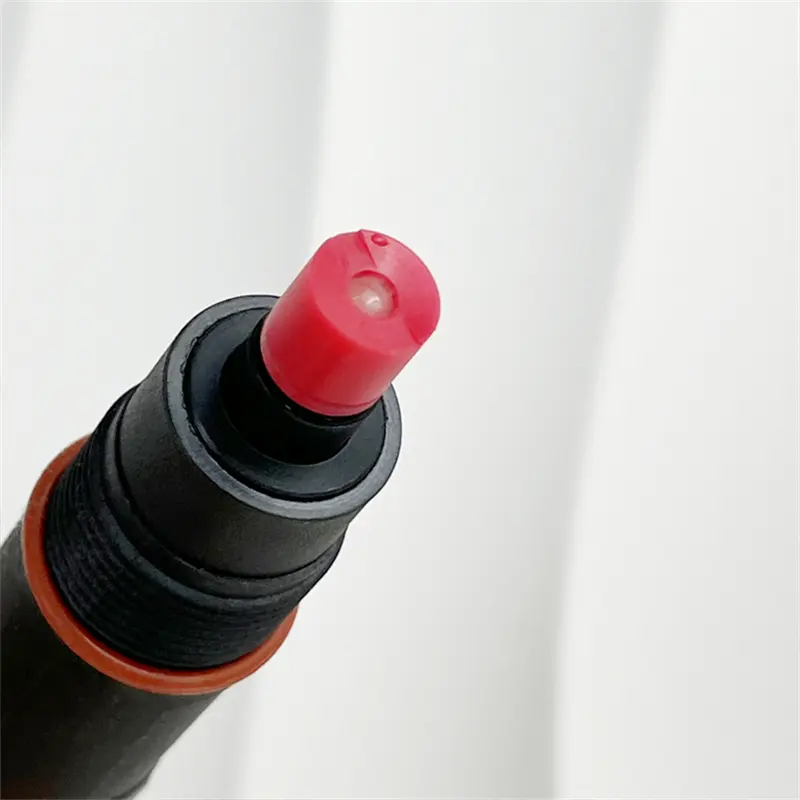

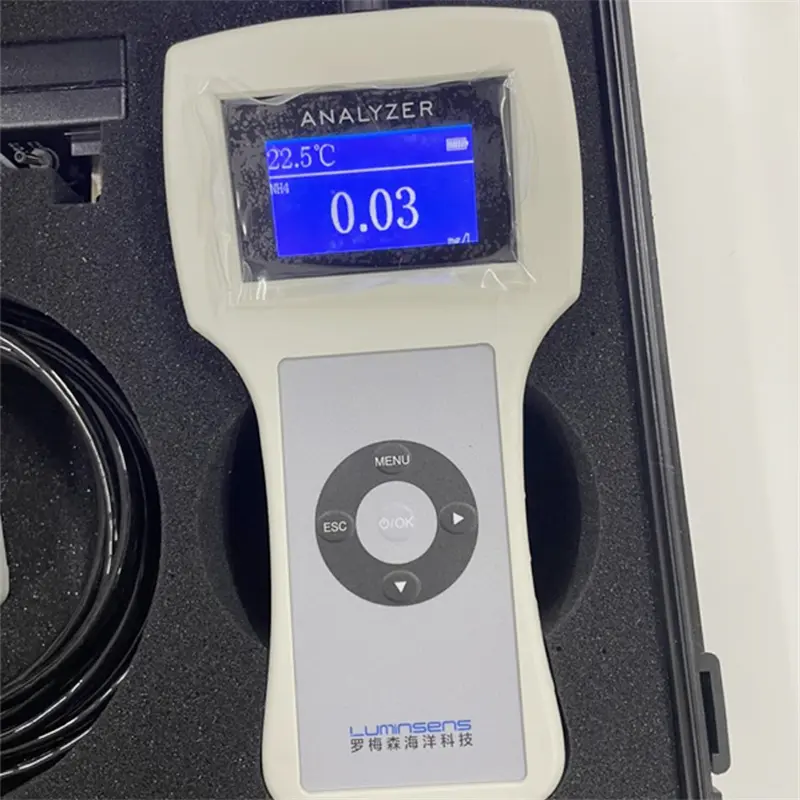

Portable Digital RS485 Ammonia Nitrogen (NH4+) Analyzer for Water Quality Monitoring
Product Paramenters
| Product Name | Ammonia Nitrogen Analyzer |

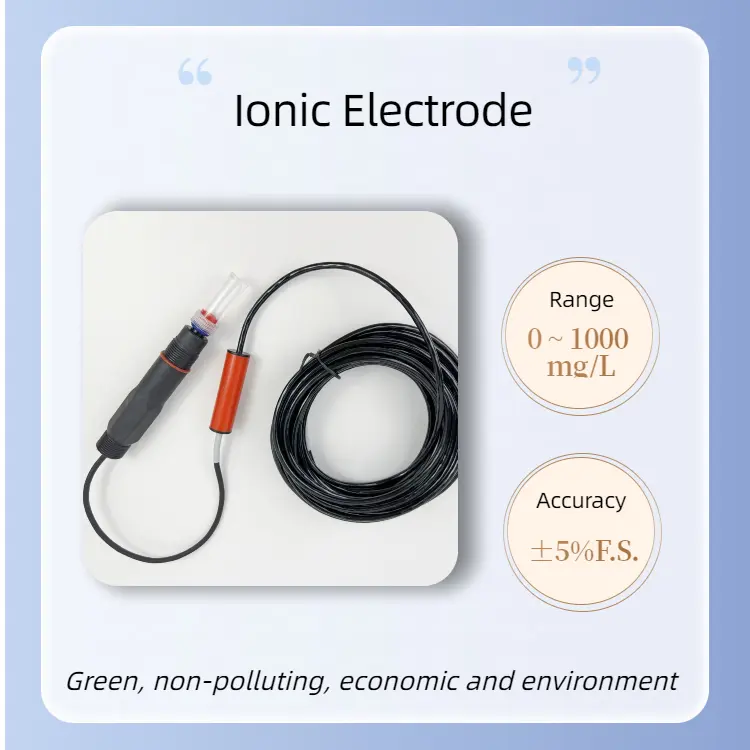

| Measurement method | Ionic electrode |
| Range | 0 ~ 1000 mg/L |
| Accuracy | ±5%F.S. |
| Power | 9-24VDC（Recommend12 VDC） |
| Material | Polymer Plastic |
| Size | 31mm*200mm |
| Working Temperature | 0-50℃ |
| Cable length | 5m, can be extended according to user need |
| Sensor Interface Supports | RS-485, MODBUS protocol |
Product Features
① Industrial-Grade Durability
Constructed from high-strength polymer plastic, the analyzer resists chemical corrosion (e.g., acids, alkalis) and mechanical wear, ensuring reliable operation in wastewater treatment plants or marine environments.

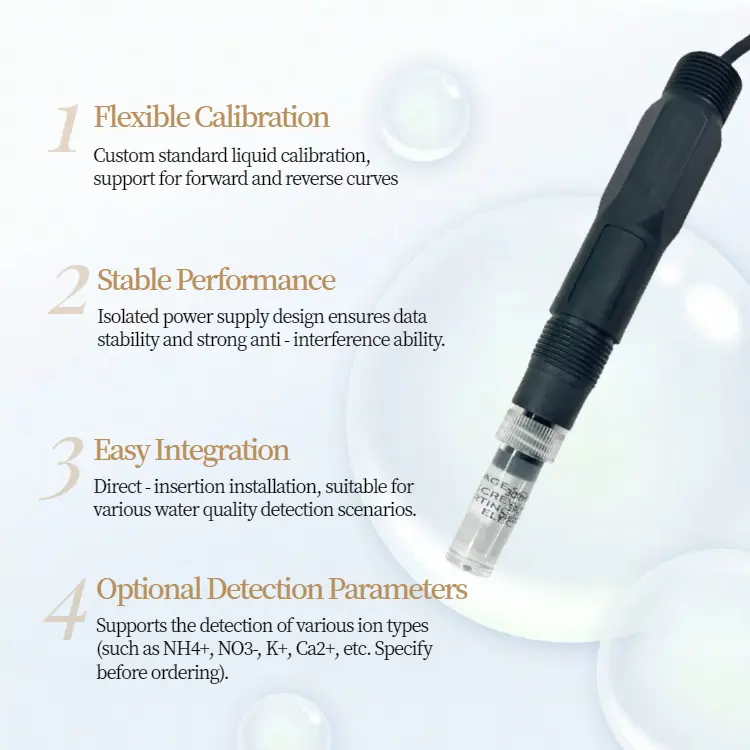

② Adaptive Calibration System
Supports standard solution calibration with configurable forward/reverse curve algorithms, enabling precision tuning for specialized applications like aquaculture or pharmaceutical wastewater.
③ Electromagnetic Immunity
Isolated power supply design with built-in surge protection minimizes signal distortion, ensuring stable data transmission in complex industrial electromagnetic fields.
④ Multi-Environment Adaptability
Designed for direct installation in surface water monitoring stations, sewage treatment lines, potable water distribution networks, and chemical plant effluent systems.
⑤ Low-TCO Design
Compact structure and anti-fouling surface reduce cleaning frequency, while plug-and-play integration lowers deployment costs for large-scale monitoring networks.
Applications
1.Municipal Wastewater Treatment
Real-time NH4+ monitoring to optimize biological treatment processes and ensure compliance with discharge standards (e.g., EPA, EU regulations).
2.Environmental Resource Protection
Continuous tracking of ammonia nitrogen in rivers/lakes to identify pollution sources and support ecosystem restoration projects.
3.Industrial Process Control
In-line monitoring of NH4+ in chemical manufacturing, food processing, and metal plating effluents to ensure regulatory compliance.
4.Drinking Water Safety Management
Early detection of ammonia nitrogen in source water to prevent nitrogenous contaminant buildup in potable water systems.
5.Aquaculture Production
Maintain optimal NH4+ concentrations in fish farms to promote aquatic health and maximize yields.
6.Agricultural Water Management
Assessment of nutrient runoff from farmlands to support sustainable irrigation practices and water body protection.
More Products
| Digital RS485 Water Quality Sensors Technical Data | ||||||
| No. | Picture | Product Name | Model | Range | Accuracy | Resolution |
| 1 |  |
DO sensor | LMS-DO10B | 0-20mg/L, 0-60℃ | ±0.1-0.3mg/L | 0.01mg/L |
| 2 |  |
DO sensor | LMS-DO10C | 0-20mg/L, 0-60℃ | ±0.3mg/L | 0.01mg/l |
| 3 |  |
Trace DO sensor | LMS-TDO100 | 0-2000ppb, 0-50℃ | ±1ppb | 1ppb |
| 4 |  |
PH sensor | LMS-PH100 | 0-14pH | ±0.02pH | 0.01pH |
| 5 | |
ORP sensor | LMS-ORP100 | ±1000.0 mV | ±0.2 mV | 0.1mV |
| 6 |  |
EC/TDS sensor | LMS-TDS102 | CT: 0-9999uS/cm; 0-100mS/cm; TDS: 0-10000ppm | ±2.5%FS | 1uS/cm,0.01mS/cm 1ppm |
| 7 |  |
Salinity/EC/TDS sensor | LMS-SAL104 | Conductivity: 0.1-500 mS/cm TDS:0-60000ppm Salinity: 0-500.00ppt | ±1.5%FS | 1uS/cm,0.01mS/cm 1ppm 0.01ppt |
| 8 |  |
COD sensor | LMS-COD100 | COD:0.1-1500mg/L TOC:0.1-750mg/L BOD:0.1-900mg/L Turbidity: 0.1-4000NTU Temperature range: 0-50 ℃ | ±5% equiv.KHP Temperature: ± 0.5 ℃ | 0.01mg/L equiv.KHP |
| 9 |  |
TSS sensor | LMS-TSS100 | 0-50000mg/L/ 0-120000mg/L | ±10%FS or 10 mg/L | 0.1mg/L or 1mg/L |
| 10 |  |
Turbidity sensor | LMS-TUR10L | 0-100NTU | ±10%FS or 0.3 NTU | 0.01NTU |
| 11 | |
Turbidity sensor | LMS-TUR10H | 0-3000NTU | ±10%FS or 0.3 NTU | 0.01NTU |
| 12 |  |
CO2 sensor | LMS-CO2100 | 2000PPM/10000PPM/50000PPM | ±5%FS | 1ppm |
| 13 |  |
Ammonia Nitrogen sensor | LMS-NH4100 | 0-1000 mg/L | ±5%FS | |
| 14 | |

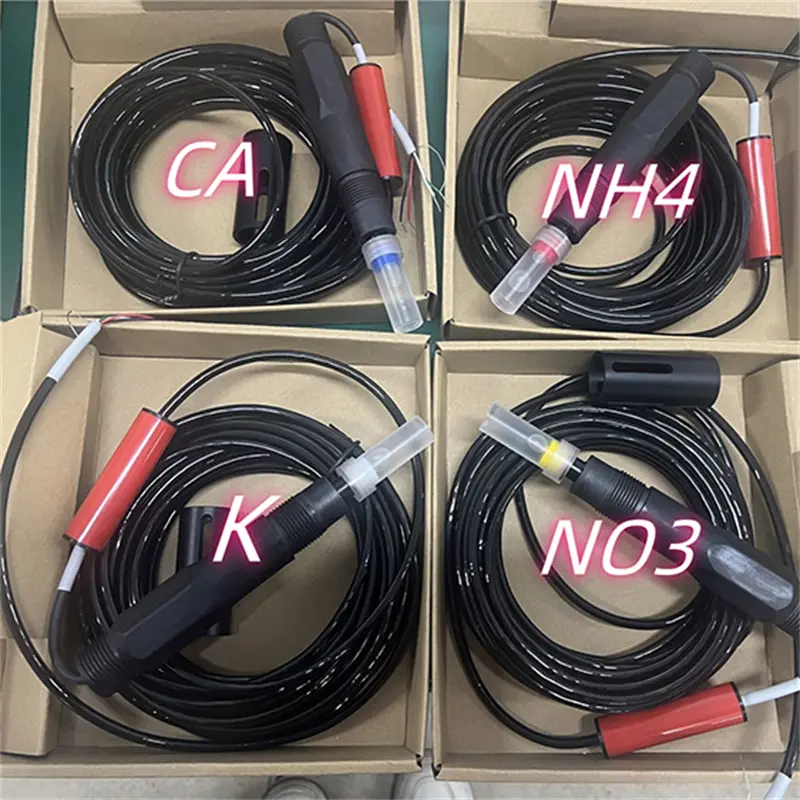

Ion Selective sensor | LMS-ION100 | 0-1000 mg/L | ±5%FS | |
| 15 | |
Oil in Water sensor | LMS-OIL100 | 0-50 mg/L ; 0-5 mg/L | ±3%FS | 0.01ppm |
| 16 | |
Chlorophyll sensor | LMS-CHL100 | 0-500ug/L | ±3%FS | 0.1ug/L |
| 17 | |
Blue-Green Algae sensor | LMS-BGA100 | 0-2000,000 cells/ml | ±3%FS | |
| 18 |  |
Residual Chlorine sensor | LMS-HCLO100 | 0 - 20.00 ppm | ±5%FS | 0.001 / 0.01ppm |
| 19 |  |
Marine Current sensor | LMS-Current100 | Temperature：-3℃ - 45℃ Velocity of flow：0-500 cm/s Flow direction：0-359.9° | ±0.05℃ ±1 cm/s or ±2% ±2° | Temperature： 0.001℃ Velocity of flow：0.1 cm/s Flow direction：0.1° |
| Water Quality Analyzer Equipment | ||||||
| No. | Picture | Product Name | Model | Size | Power | Display Output |
| 20 |  |
Protable DO Analyzer | LMS-PA100 | 100mm*204mm | < 0.5 W Power supply 7.5V, 5 batteries | LCD display screen |
| 21 |  |
Multi-parameter Protable Water Analyzer | LMS-PA100P | 220mm*120mm*100mm | Rechargeable lithium battery with 220v to dc charging adapter | LCD display screen |
| 22 |  |
Multi-parameter Touch-screen Online Analyzer | LMS-OA200T | 180mmx230mmx100mm | AC power supply: 220 VAC | 7-inch touch screen |
